LHT-17 150 mini-fine wire wet drawing machine

Brand Name : SPT

Model Number : 600mm

Certification : ISO,Mill Test Report or the third party Test SGS etc,SGS,ISO/BV/SGS/CE

Place of Origin : China

MOQ : 1

Payment Terms : TT LC

Standard : ASTM,AISI,JIS,GB,DIN

Application : Manufacturing

Wire gauge : 0.1-3mm

Type : Galvanized,Drawn Wire,spring wire,soft stainless steel wire,SAIP/SAFS

Steel grade : STEEL

Packaging Details : Exporting Package

Contact Now

Type: LHT-17/150
Description: This machine is mainly used to draw wires of some non-ferrous metals, black iron wires with high-quality and stainless steel wires.
Specifications: 1.Dia.of spool for finished product:150mm
2.Numder of wiredrawing dies:17
3.Dia.of crude wire:0.45mm
4.Dia.of finished wire:0.12mm
5.Cumulative reduction:92.9%
6.Mean pass reduction:14.4%
7.Wire drawing of finished product cylinder:300-500m/min
8.Power of main electric motor:YCTG160-4A
9.Speed range of the motor:300-1250r.p.m
10.Overall dimension(LxWxH):1500x680x850mm
11.Weight:1200kg

Quality LHT-17 150 mini-fine wire wet drawing machine wholesale

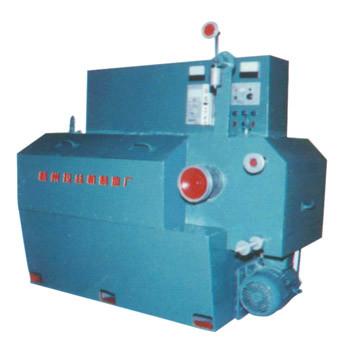

LHT-17 150 mini-fine wire wet drawing machine Images
