Automatic Duct Forming Line Welding Machine

Brand Name : SPT

Model Number : 1250

Certification : CE, ISO

Place of Origin : China

MOQ : 1

Packaging Details : Exporting Package

Payment Terms : TT LC

Control System : PLC

Cutting Method : Flying Saw

Diameter : 2-6 inch

Forming Method : Roll Forming

Length : 6-18 meter

Material : Steel

Power : 15-75KW

Roller Stands : 5-12 stands

Speed : 20-100m/min

Surface Treatment : Galvanized

Tolerance : ±0.5mm

Wall Thickness : 0.3-2.5mm

Warranty : 1 year

Welding Method : High Frequency Welding

Contact Now

Product Description

Type	SMAL-III-1250	SMAL-III-1550
Thickness	0.5-1.2mm	0.5-1.2mm
Width	1250mm	1550mm
Working speed	18 m/min	18 m/min
Coiler Max-weight	8000kg	8000kg
Power	9.5kw	9.5kw
Weight	3250kg	4000kg
Dimension	2300×1800×1400mm	2300×2100×1400mm

Feature
1. Slitter / plasma cutting of the tubes to the preset length and required number of pieces.
2. The cut to length is made by the patented slitter (no noise, no hot sparks created by the saw blade, no leaning of the cut edge). Modern industrial proof computer control.
3. The electric drive ensures that even by using 2.0 mm strip coil the 2020 continually produces perfect, tight spiral tubes matching or surpassing the standards of DIN, BS, Euronorm and Smacna
4. The perfect adapted options for making reinforcement beads, for the production of tendon sheet tubes or the automatic production of notches for the METU flanges, during the production process are further advantages of the tubeformer 2020.
5. 2020 is the only machine for the fastidious costumer.

Technical data

Diameter	¢80 - ¢2500mm
Thickness of strip	Galvanized steel	0.4-2.0mm
	Stainless steel	0.4-1.2mm
	Aluminum	0.4-2.0mm
Width of strip	Standard 137mm	0.4-1.0 mm
	Standard 140mm	1.1-1.3 mm
	Standard 150mm	1.4-2.0 mm
Cutting system	Slitting cutter / Plasma cutter
Power	22Kw
Weight	3200kg
Dimension	Main machine	2100×1800×1500mm
	Decoiler	178011301250mm
	Run-out table	27009501200mm

Quality Automatic Duct Forming Line Welding Machine wholesale

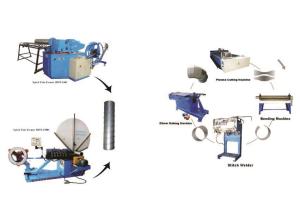

Automatic Duct Forming Line Welding Machine Images
